Luda 600R - Personal/Family Project.

This unique project was my inaugural endeavor while studying at Universidad Dominicana O&M, where I received support from my father, godfather, and an uncle who served as a mentor for both my brother and me. Under his guidance, we learned engine building, operation, and car structure among other things. You might be curious about the name LUDA; it combines the first two letters, LU, from my brother's name, and the first two letters, DA, from my middle name. Completing this project was a transformative experience that exposed me to a new realm of knowledge and skill-building. It was this rich experience that motivated me to transfer to Miami Dade College, where I initiated the Formula SAE project.

In these pictures, you can see my father, brother, and uncle working with the fiberglass. We created a cardboard model and applied the fiberglass over it. Although our resources were limited for a more refined job, doing everything manually was incredibly rewarding.

(There was no use of 3D printing whatsoever.)

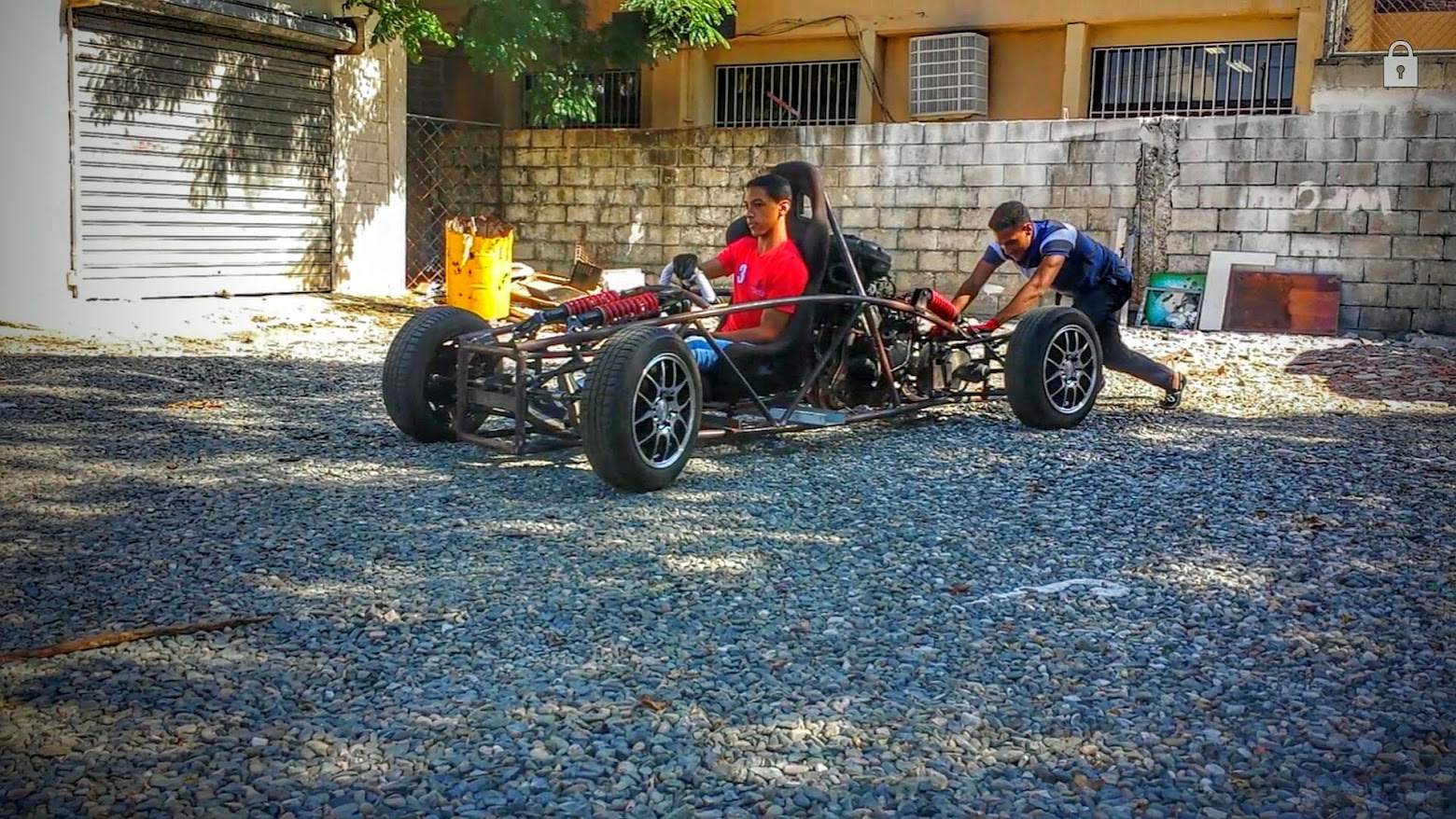

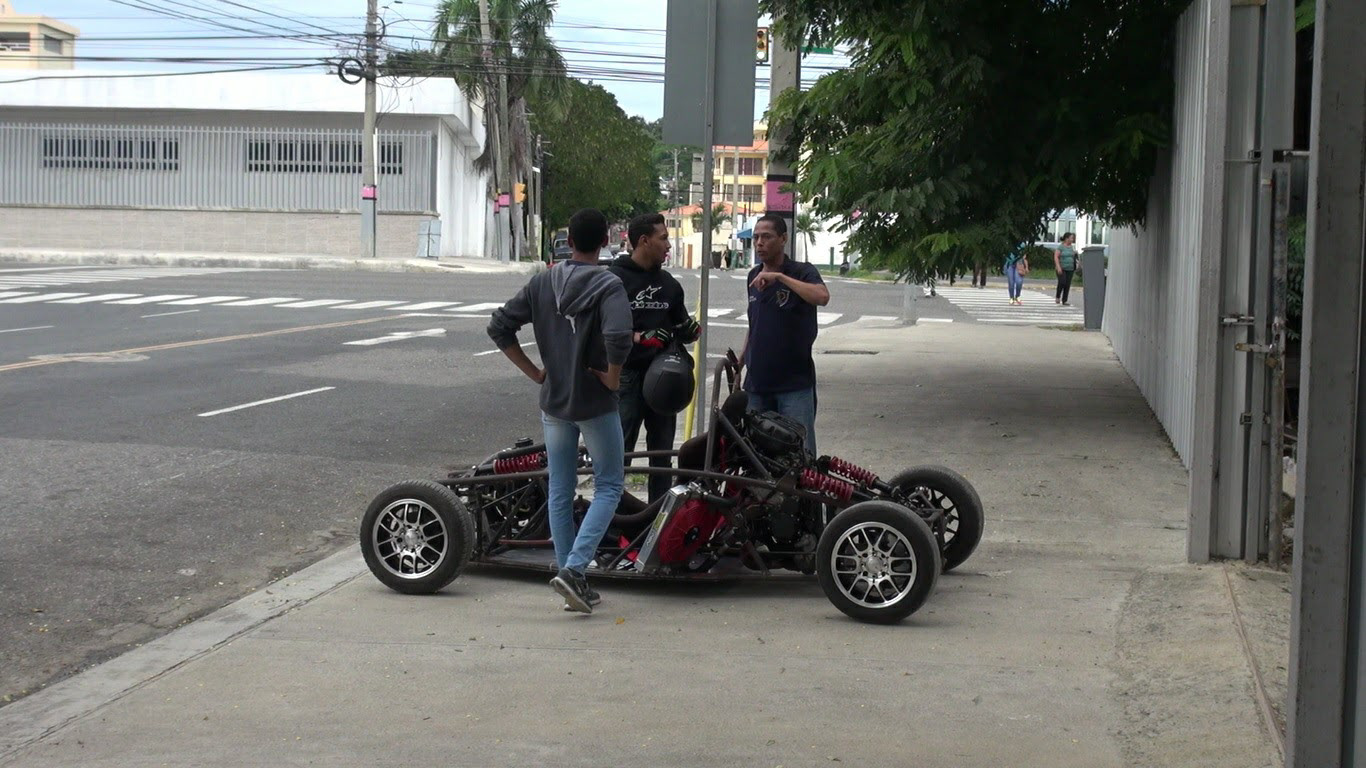

First time going out to test

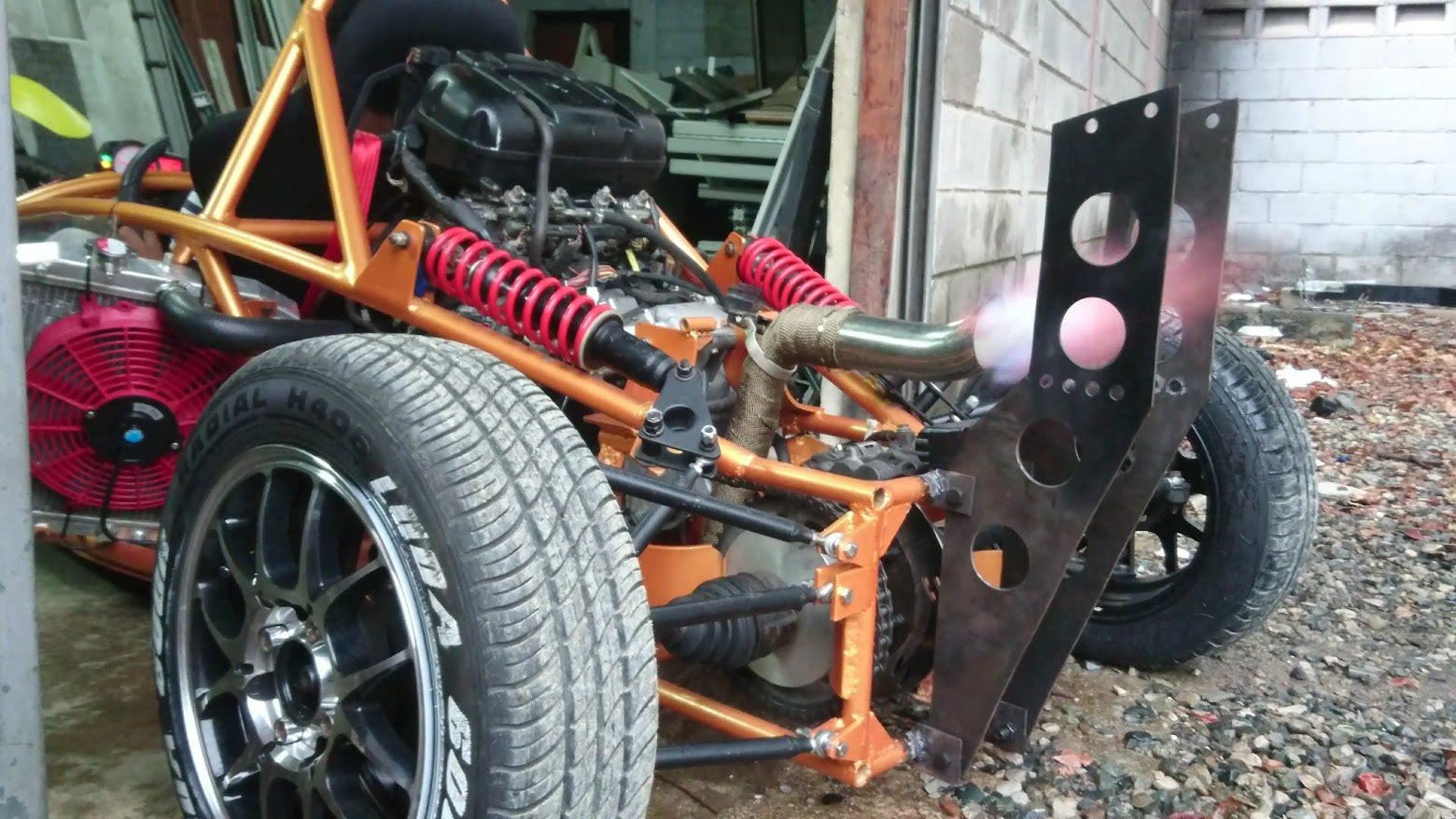

In the pictures, you'll notice that I used a specific bit to drill the holes in the wing support. It took some time because the first bit broke, and then I had to purchase a new one to continue with the second attempt.

I used this bit to drill the holes of the wing support

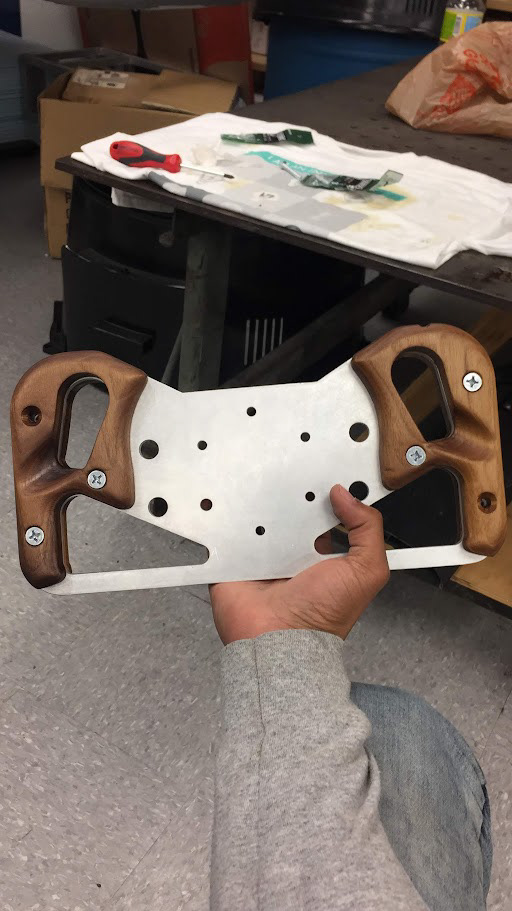

During my time at Miami Dade College, I had the chance to design a new steering wheel. I utilized Fusion 360's CAM/CAD features to plan and execute the creation of the steering wheel.

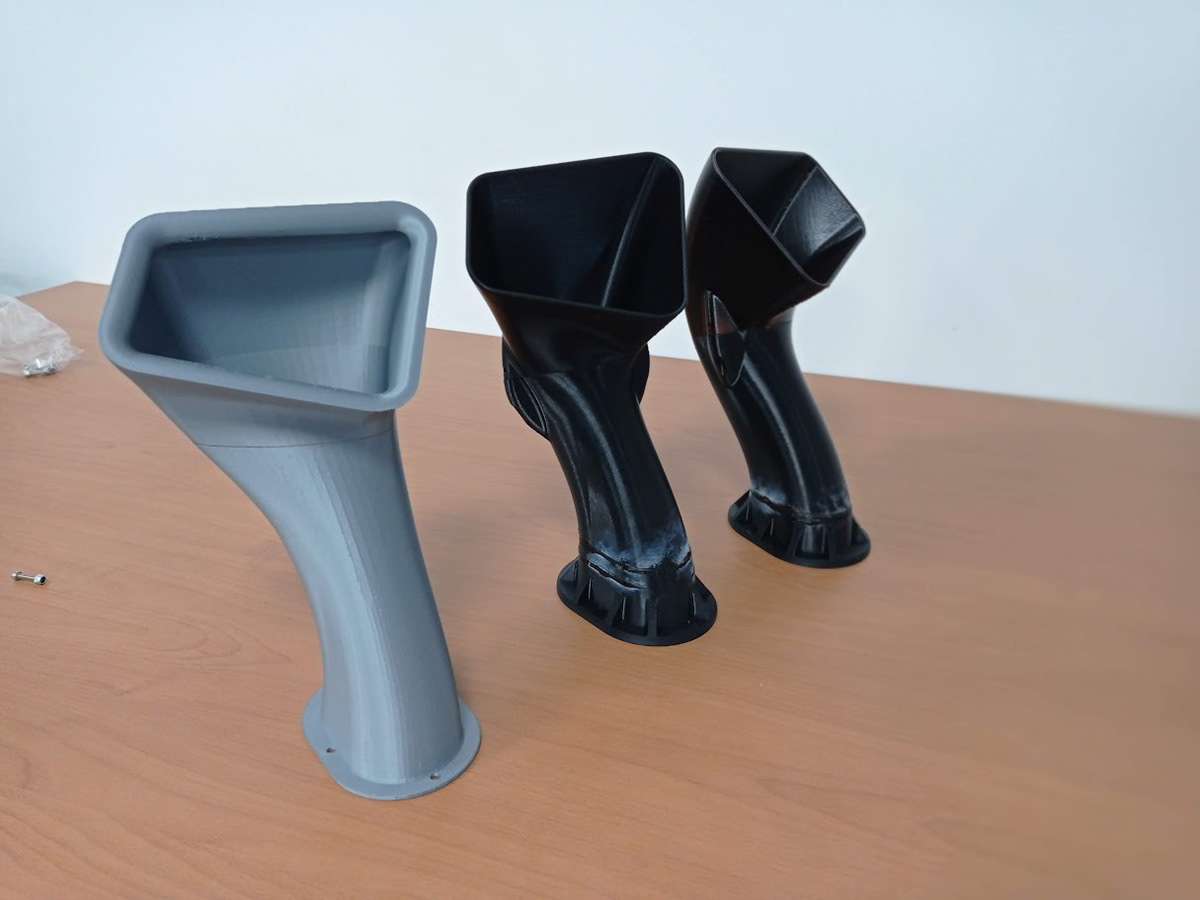

Here are three models each iteration from good to better.

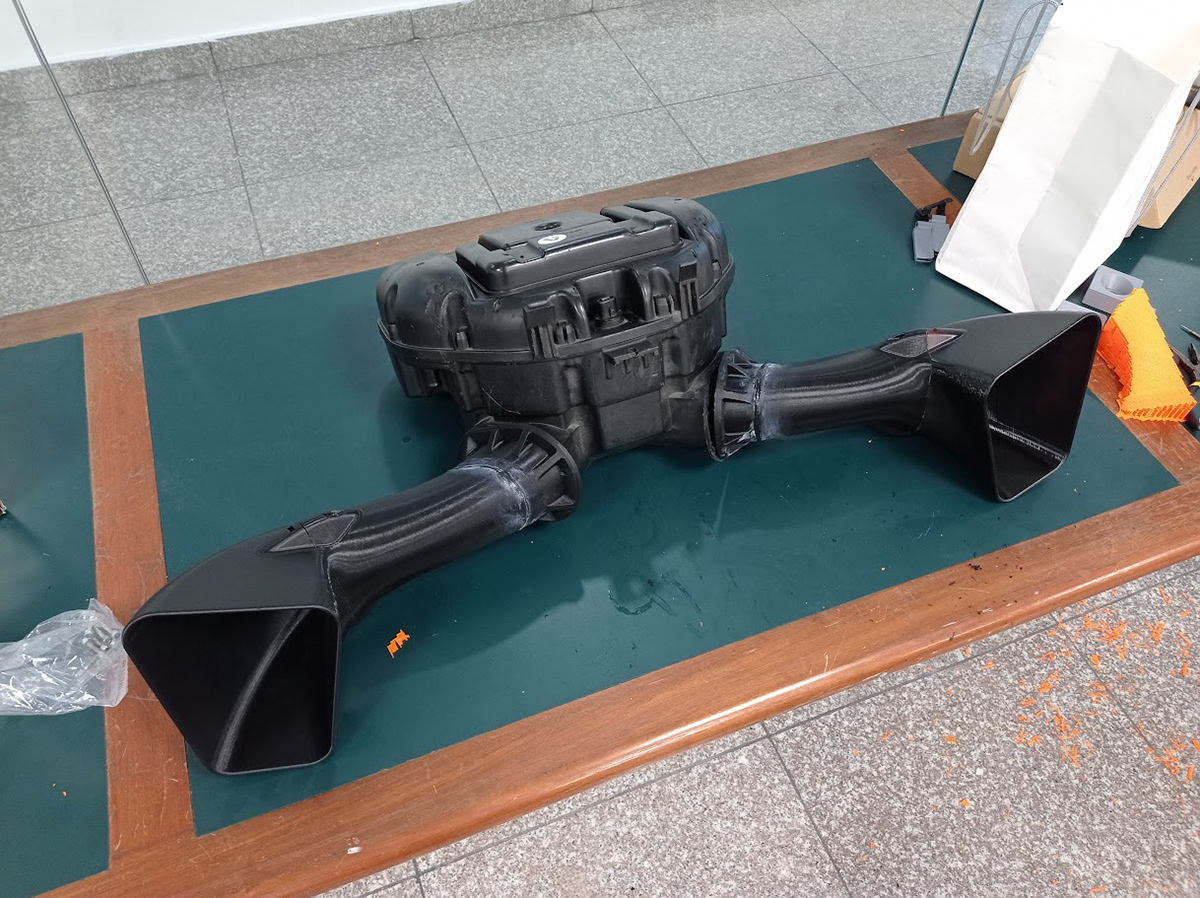

Used Solidworks simulation to validate my final design of the air intake. Used fusion 360 to design the model.

The content from this point downwards includes recent photos and videos from December 2023.

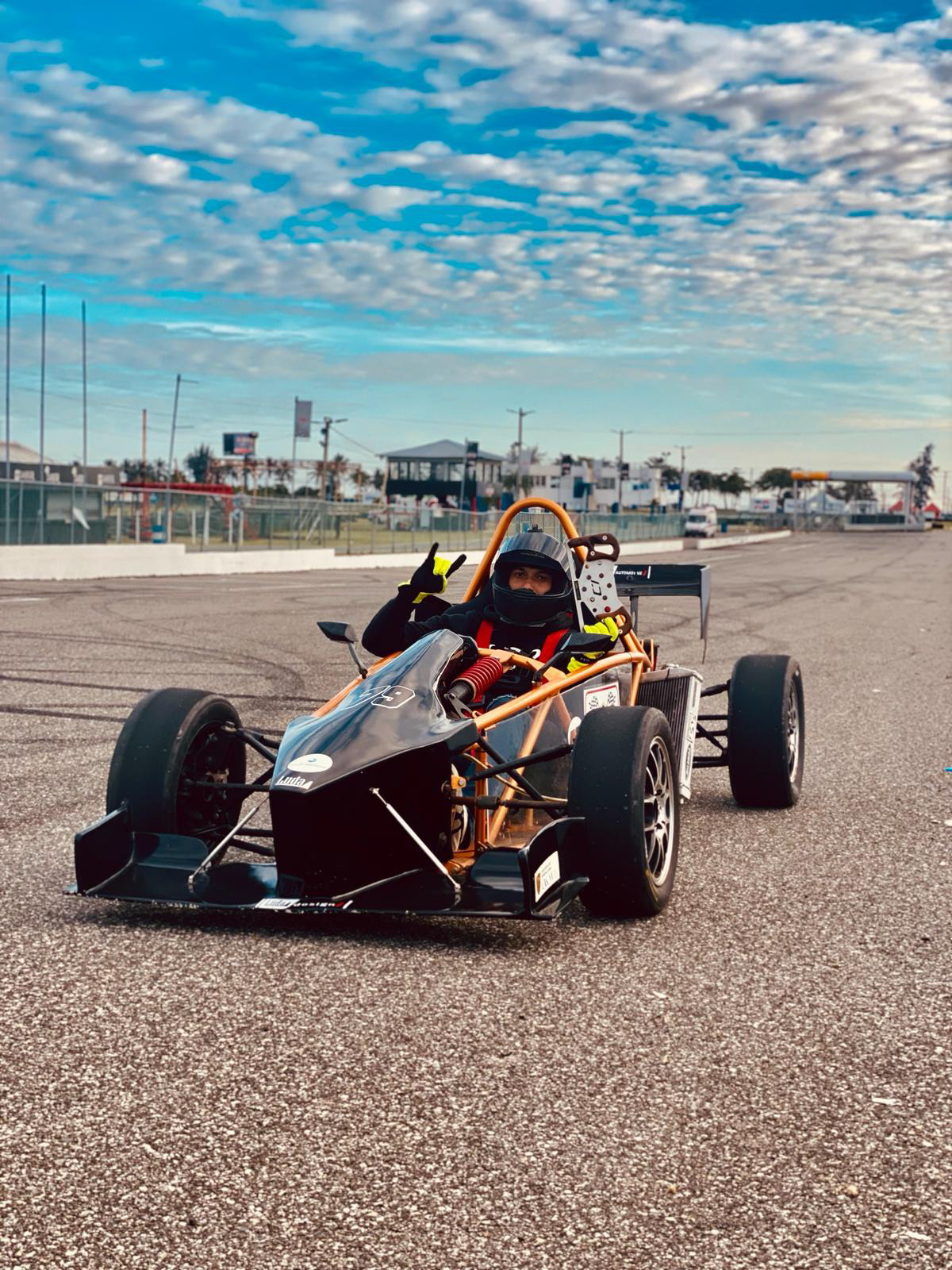

At the track

Bonus Video

I used this bit to drill the holes of the wing support
